With the viewer settings functions you can view or modify the program settings of one or more PADS4 Viewers.

​
To view the program settings of a PADS4 Viewer

  1. Click on the Viewer tab in the navigation pane. EN Agent Navigationpane Viewertab Pn
  2. Select a Viewer from the list of available destinations.
  3. Click Viewer settings in the list of available viewer information categories.
After this, the system will automatically connect to the connected PADS4 Server to retrieve the requested information from the selected Viewer and display the results in the viewer settings window.
The PADS4 application will only be able to start retrieving the requested viewer information when you have selected both a Viewer and a Category in the navigation pane.


​

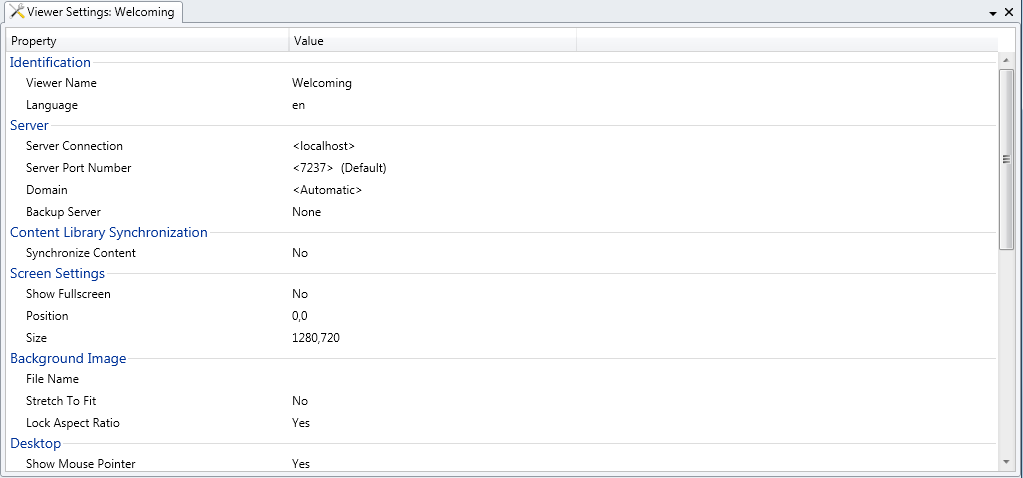

Viewer settings window

The viewer settings window shows the programs settings of a PADS4 Viewer. This enables you to check remotely if the settings of a PADS4 Viewer have been set correctly. EN Agent Viewer Settings Pn

​
Views

To change the view of the viewer settings window, click one of the following buttons on the Home menu of the ribbon bar:
  • EN Agent Ribbon Viewer Settings One Viewer Pn
  • (Default view) Shows the program settings of the Viewer that has been selected in the navigation pane.
  • EN Agent Ribbon Viewer Settings Multi Viewer Pn
  • Shows the program settings of all Viewers in your installation in one table view. This view is typically used to compare the program settings of multiple viewers. In this comparison, the Viewer that has been selected in the navigation pane is used as a reference point. The settings of this Viewer are marked with a green color. All program settings of other Viewers that differ from the settings of this Viewer are marked with a red color.
    Only viewers that have the status ‘Connected’ are included in the view. The program settings of Viewers that are not connected to your PADS4 Server can not be viewed.

​
Editing the program settings of a PADS4 Viewer

To remotely adjust the program settings of a PADS4 Viewer:
  1. Click Edit on the Home menu. EN Agent Ribbon Edit Settings Pn

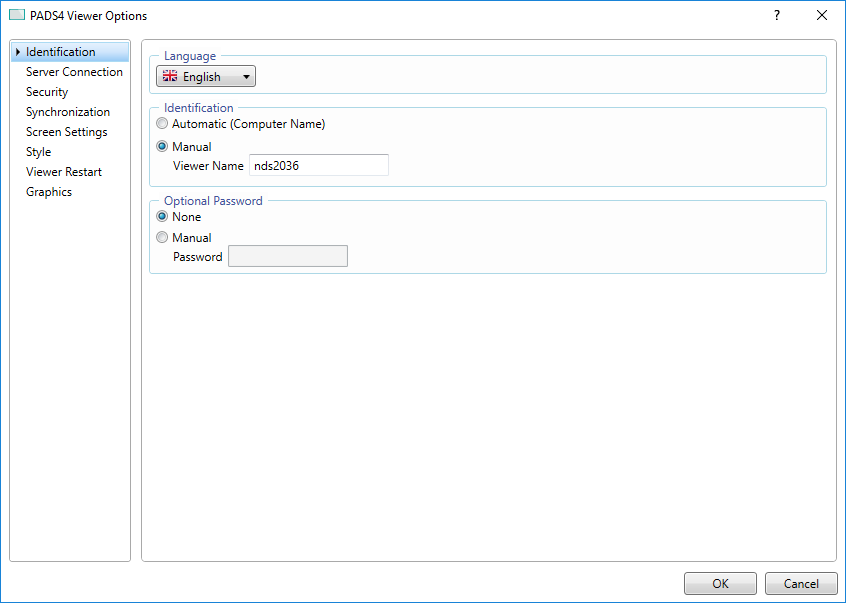

  2. Change or more program settings. EN Agent Viewer Settings Multi Viewersettings Pn
  3. Click OK to save the adjusted settings and close the settings window.
When you change the viewer identification settings of a PADS4 Viewer, the viewer will be renamed to the new viewer name. All its existing settings, like viewer group memberships, assigned license, and scheduled presentations, will remain intact. When you change the server connection settings of a PADS4 Viewer, the viewer may lose its connection with your PADS4 Server. As a result, you might no longer be able to access the viewer via PADS4 Agent.

​
Editing the program settings of multiple PADS4 Viewers

To remotely adjust the program settings of multiple PADS4 Viewers:
  1. Follow the procedure as described above to view the program settings of the PADS4 Viewer you want to take as a reference point.
  2. Click Multiple Viewers on the Home menu to switch to the view showing the program settings of all your PADS4 Viewers. EN Agent Ribbon Viewer Settings Multi Viewer Pn
  3. Select the Viewers for which you want to change the program settings by clicking the check boxes in front of the listed items.
  4. Click Edit on the Home menu. EN Agent Ribbon Edit Settings Pn
  5. Check mark the check box of the sections for which you want to program settings to be updated for all selected PADS4 Viewers and optionally change the program settings in the section. EN Agent Ribbon Viewer Settings Pn
    Some sections (like the Identification section) don’t have a check box. This means that the program settings in this section cannot be updated for multiple PADS4 Viewers in a single action. If you want to adjust one of these program settings, you have to change it for each viewer individually.
  6. Click OK to save the adjusted settings and close the settings window.
After this, all adjustments will be updated for all selected PADS4 Viewers.
