Managing your connections

To be able to connect to your PADS4 Server you must first configure your connection. A connection typically describes how to connect and log on to your PADS4 Server. You manage connections in the PADS4 Server Connections window. In most situations you will have only one PADS4 Server, but optionally you can connect to multiple PADS4 Servers. The connections that you define in the PADS4 Server Connections window are shared by all PADS4 applications that have been installed on your computer.

​

To view your connections

1. Click Manage in the Connections section of the Home tab in the ribbon bar. This automatically opens the PADS4 Server Connections window, where you can view your connections.



​

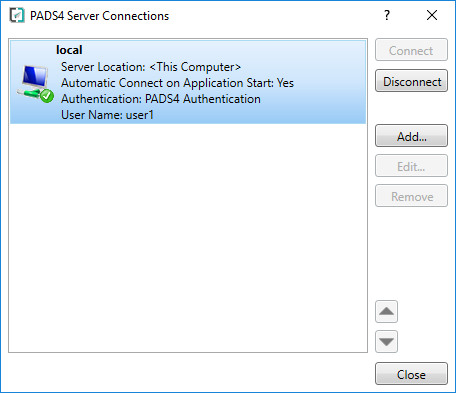

PADS Server Connections window

The PADS4 Server Connections window gives a list of all connections that have been defined on your computer with their actual status. You can use the Connections window to manually connect to or disconnect from a PADS4 Server. If a connection is not connected yet, you can select it and click Connect to manually establish a connection. To disconnect again, simply click Disconnect.

​

To add a new connection

1. Click Add….

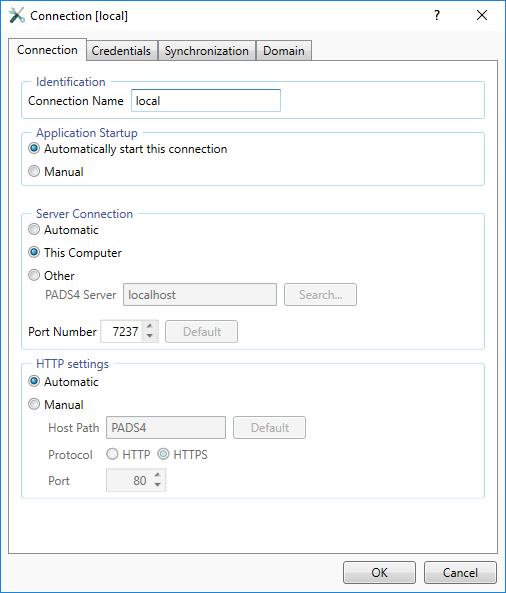

2. Fill in the settings on the Connection tab. Connection Name
   A unique name that will be used to identify your connection. The name you enter here will be used everywhere in the GUI to indicate your connection. Application Startup
   Decide if you want your system to automatically connect to your PADS4 Server when your PADS4 application is started. Server Connection

   Specify where your PADS4 Server is located. Possible options are:
   A PADS4 Server can only be automatically detected when the PADS4 Server process is running and the UDP port number 3702 is not blocked by a firewall on the server PC or somewhere else in the network. Automatic detection only works in a Local Area Network.

   Connection option	Description
   Automatic	Your PADS4 system will automatically detect the location of your PADS4 Server. If you have only one PADS4 Server in your network, then this may be the best option to select. When your PADS4 Server will be moved to another location in your network or get a different network address the system will automatically make the required adjustments. When you have multiple PADS4 Servers (like a backup server) running in your network, you cannot use this option. There is no guarantee that the system will detect the right server.
   This Computer	Your PADS4 Server is expected to run on the same computer as your application. If you have installed both PADS4 Server and your PADS4 application on the same computer, then this is the preferred option. It guarantees that the system will keep working even when the name of your computer will change. It also will keep the communication locally which is much faster. Finally it prevents that your system will go through the network to access your PADS4 Server and may be blocked by a firewall.
   Other	Use this option if none of the above options is applicable. With this option you can manually specify the network address of your PADS4 Server. Here you can enter a computer name, IP address or DNS name. Optionally you can click Search… to automatically search for existing PADS4 Servers in your network. When clicking Show Advanced Options you have the possibility to specify an alternative Port number to communicate with your PADS4 Server. The port number you enter here must match the port number of your PADS4 Server. You specify this port number in the server settings of the PADS4 System Management application.

   Http settings
   When set to automatic, PADS4 will identify the server connection and set the http settings based on the default connection settings. This can be adjusted by setting it to manual and specifying a Host Path and port.

   PADS4 is using 2 network protocols. Web related connections are used in the PADS4 Agent (Proof of Play and Audit log) and PADS4 Desktop Viewer (synchronization). In some situations, the connection to the server is established through a router or proxy using port forwarding. In that case, you might have to specify a different host path/port to connect to the PADS4 Server.
3. Specify the logon settings on the Credentials tab. Credentials
   Here you can specify the User Name and/or Password you want to use to log on to your PADS4 Server when a connection is established. If you only specify a user name, you will be prompted for the password when connecting. If you select Automatic Login, the system will try to automatically log on to your PADS4 Server when connecting. If the logon is unsuccessful, you will be prompted for the correct user name and password.
   1. Often the Automatic Login option is used in combination with the Automatically start this connection option on the Connection tab. This way your application will fully automatically connect and log on to your PADS4 Server when starting your PADS4 application.
   Domain
   If your PADS4 Server PC hosts multiple PADS4 Servers, then you have the possibility here to manually specify the Domain that corresponds with your PADS4 system. You may also need domains when you have multiple connections to different PADS4 Servers. In that case, domains let you keep those connections separated on your client PC. In all other situations, select the option Automatic.
4. Optionally adjust the synchronization settings on the Synchronization tab.
   Content Library Synchronization Activation
   Specify the method that must be used for synchronization.
   Automatic will synchronize when changes are detected, Manual will wait for you to click a synchronize now button and never will not synchronize. When all three options are disabled it is not allowed to use synchronization. For instance when the server and Designer are on the same PC, synchronization is not needed, because they use the same environment.

   PADS4 Content Library Storage Folder
   Specify where the content must be stored if the automatic generated location is not possible.
   • Domain
     If your PADS4 Server PC hosts multiple PADS4 Servers, then you have the possibility here to manually specify the Domain that corresponds with your PADS4 system. You may also need domains when you have multiple connections to different PADS4 Servers. In that case, domains let you keep those connections separated on your client PC. In all other situations, select the option Automatic.
   • Click OK to save your settings.



​

To edit a connection

Before you can start editing a connection, you first have to make sure that the connection is disconnected. It’s not possible to make any adjustments to a connection that is currently in use.

1. Click the connection in the PADS4 Server connections window to select it.
2. Click Edit… to open the connection properties window.
3. Make the required adjustments (see description above).
4. Click OK to save your settings.



​

To delete a connection

1. Click the connection in the PADS4 Server connections window to select it.
2. Click Remove to delete the connection.

After this your connection will be permanently deleted for all PADS4 applications on your computer.
